Test Wi-Fi Range

Your dog’s Fi Collar can connect to a known Wi-Fi network when it's out of range of a Fi Charging Base or the Fi App. Understanding the reach of your Wi-Fi is important—whenever the collar connects, it reports the location associated with that network. This helps avoid unnecessary GPS or LTE-M activation, which conserves battery life.

Testing your Wi-Fi coverage is simple and gives you a clear view of where on your property your dog can roam while staying connected. It’s a quick way to ensure accurate location updates and maximize power efficiency.

Steps for Testing Your Wi-Fi Coverage in Your Home

What you will need to test: Fi Charging Base (unplugged), Fi Collar, Mobile Device with Fi App

Total time: 15 minutes

1. Unplug your Fi Charging Base so your collar can connect to Wi-Fi instead of the base.
2. Remove your dog's Fi Collar and place it in a frequently visited room.
3. Walk away from the collar with your mobile device. This allows the collar to connect to Wi-Fi instead of your phone via Bluetooth.

4. Wait 2–3 minutes, then check the collar’s connection status:

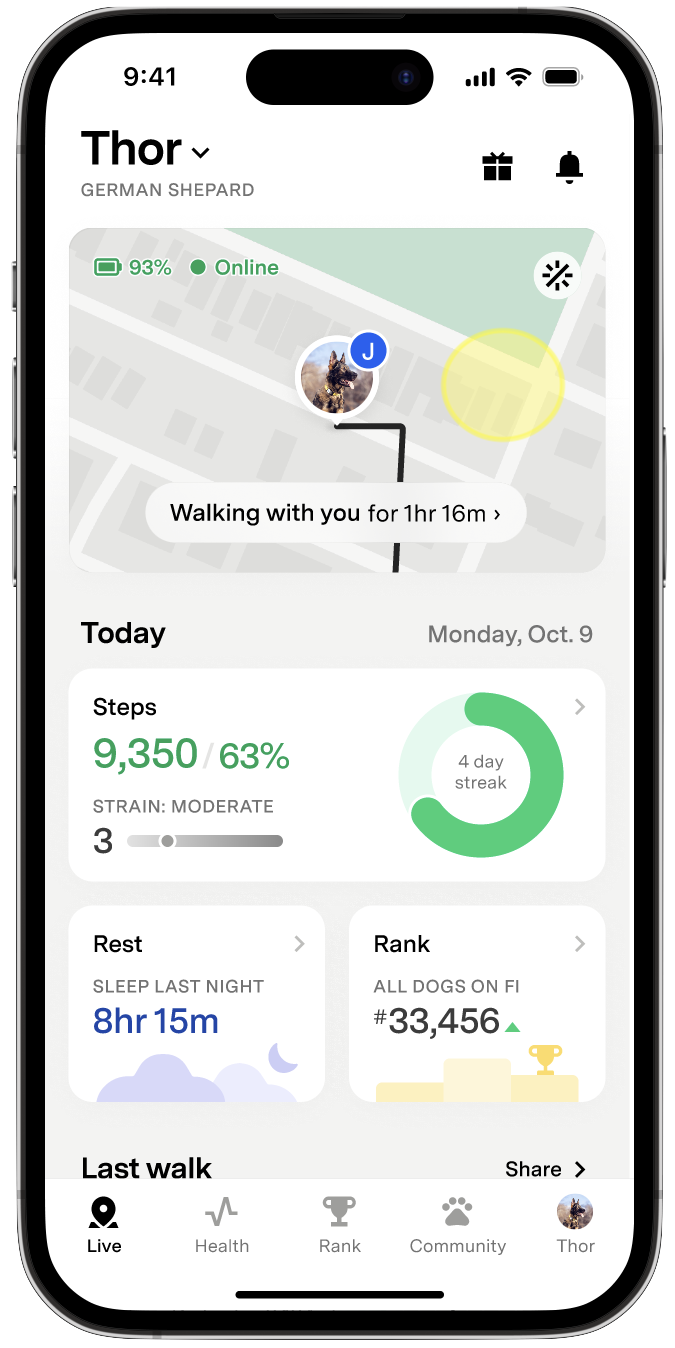

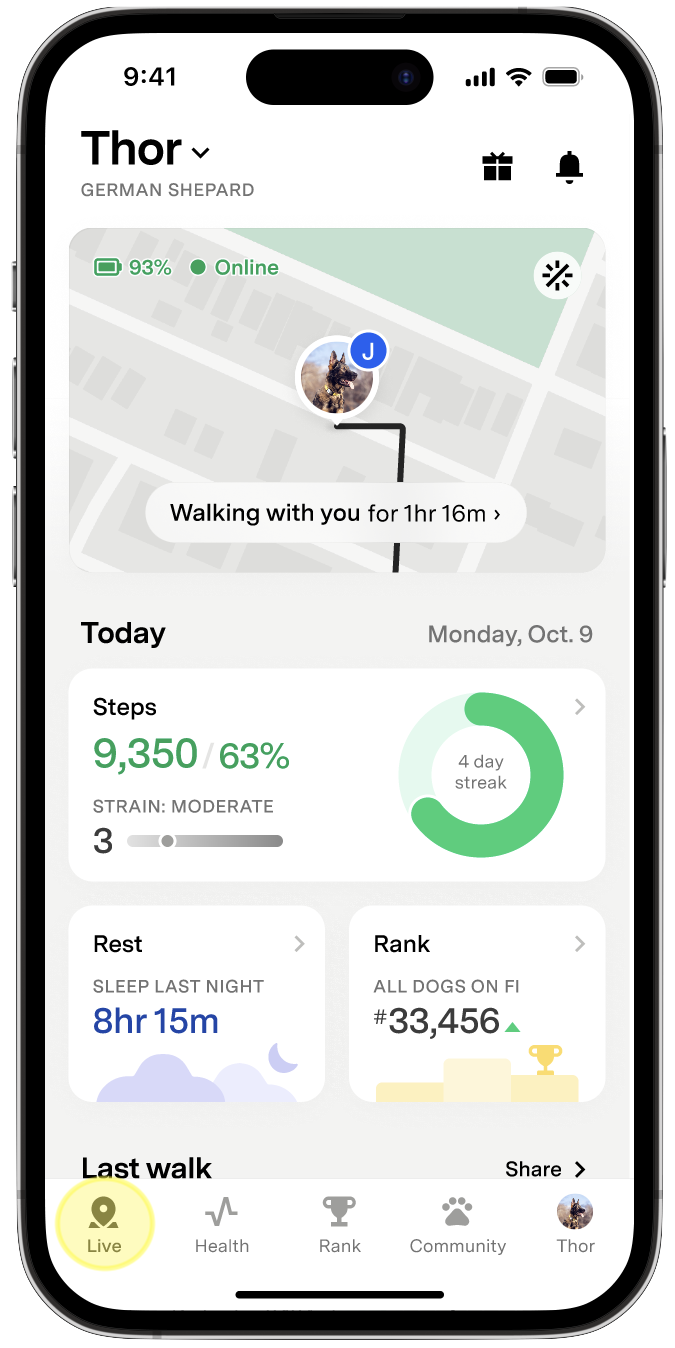

   1. Open the Fi App and tap the Live Tab:



   2. Tap your dog's profile picture in the Live Card:

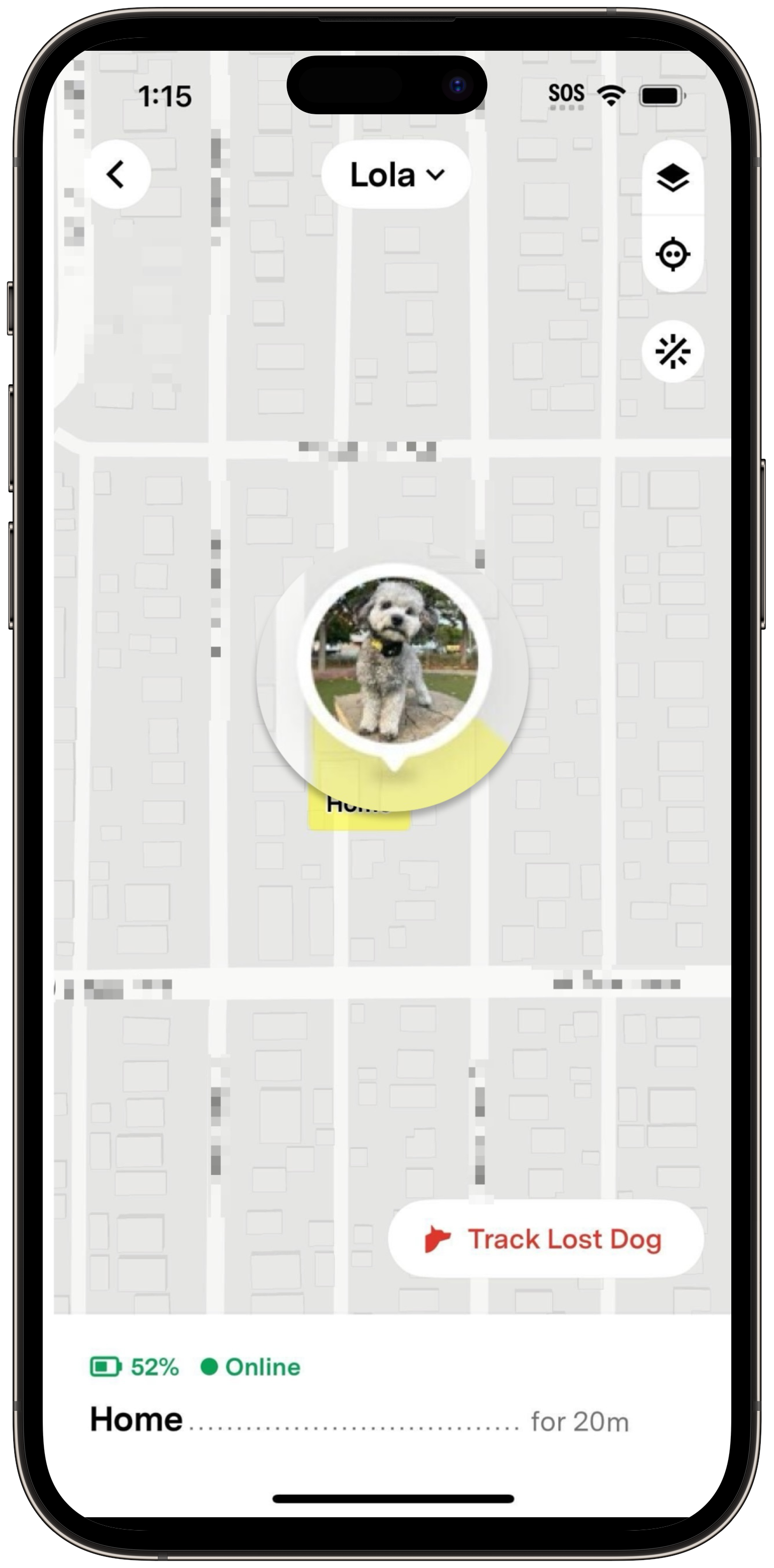

   3. View the Live Map. Tap your pet's photo to reveal the current connection state:



   4. The status card will display the current connection source.

      • Please note: Bluetooth connections can occur through walls/floors. You may need to walk outside to break this connection.

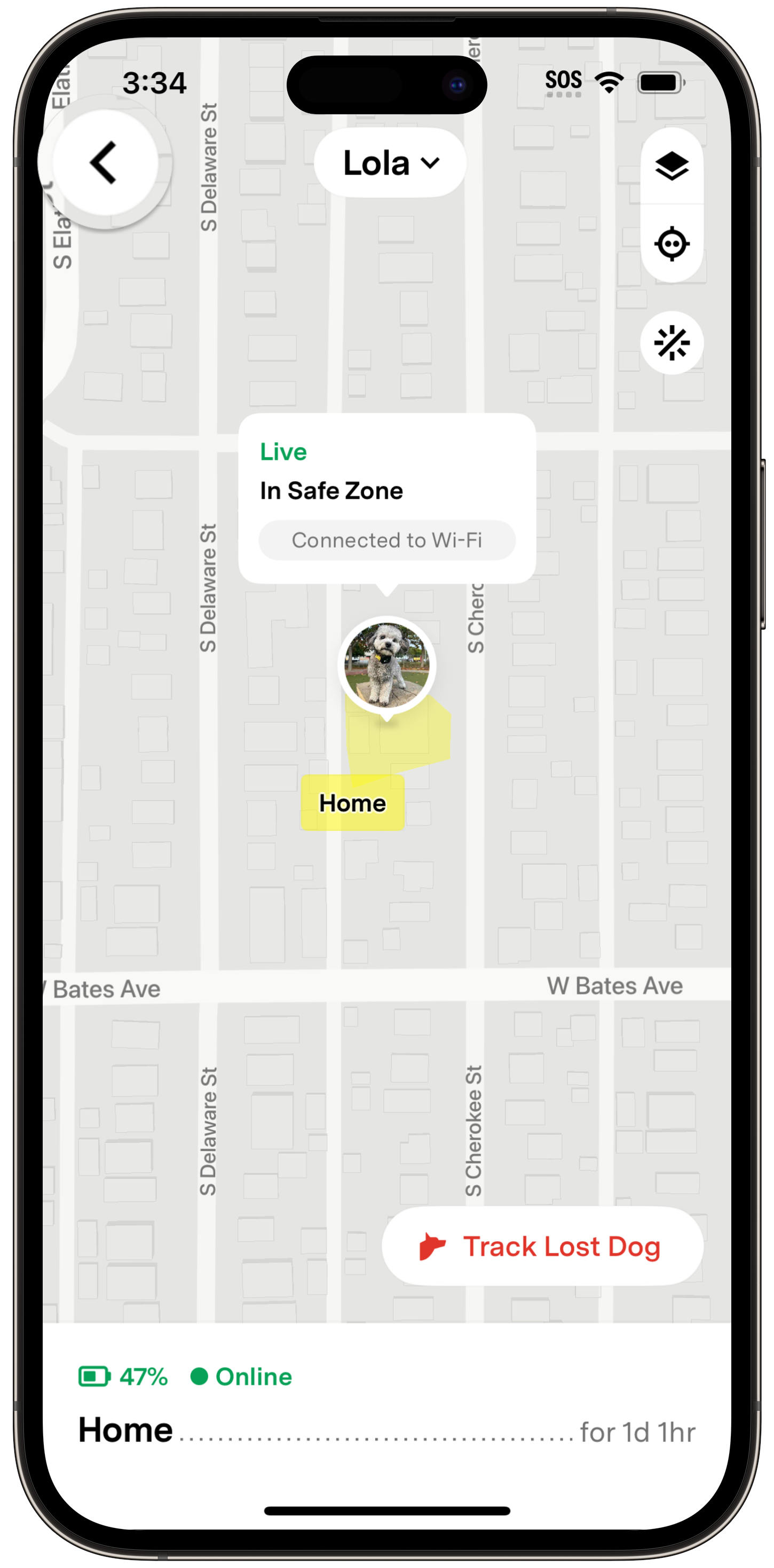

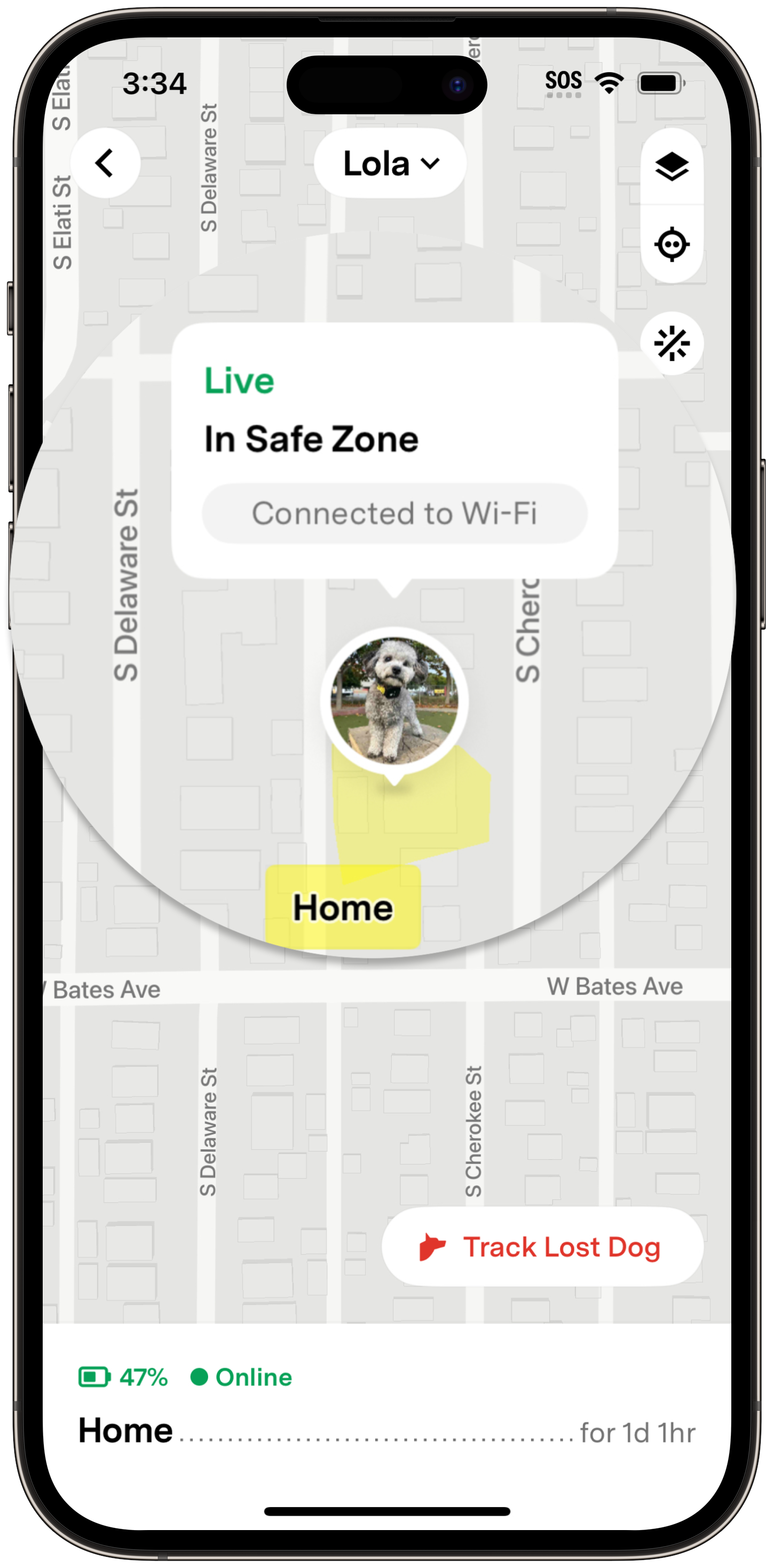

        The status card will display Wi-Fi connection like this:


   5. To finish the test, exit the full map screen by tapping the back button in the top left corner:



You’ve now mapped out the reach of your Wi-Fi coverage, giving you better insight into where your dog’s Fi Collar stays connected and how to optimize battery performance and location accuracy.
